Validated FIPS 140-2
The Cryptographic Module Validation Program (CMVP) encompasses validation testing for cryptographic modules and algorithms:
FIPS 140-2 Level 3KeyUp V FIPS Certificate
Home Corporate Overview Products & Support Our Clients Contact Us
The new FIPS 140-2 certified  KEY-UP V security
encryption devices for electronic funds transfer
applications utilize the latest security specifications
mandated by the American National
Standards Institute
(ANSI) while offering
significantly  lower cost per transaction.
|    Products    |    Key Management    |    Functions    |    Software Updates    |

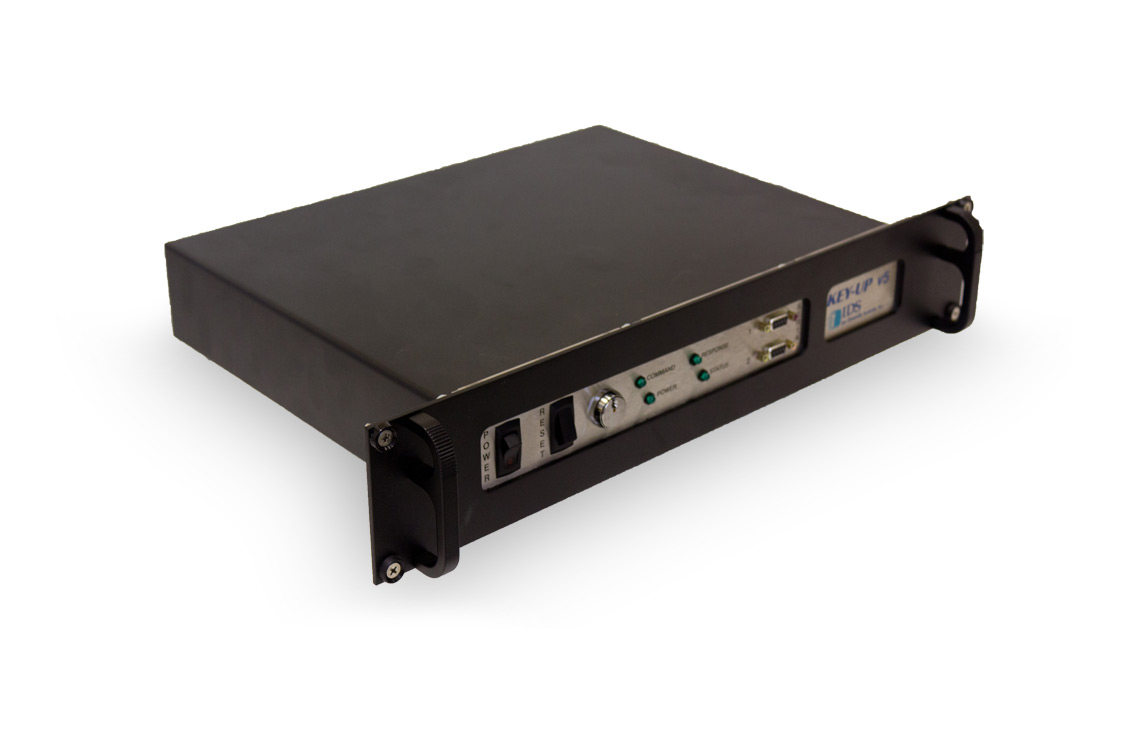

KeyUp V

 KEY-UP V Details:

The new KEY-UP V family incorporates the latest security specificationsrequired to achieve FIPS 140-2 Level 3 certification.  In addition, the KeyUp V offers the following benefits over earlier models:
  • Key Block Support
  • 3DES triple length key support
  • Software zeroization
  • CSP (Critical Security Parameter) zeroization
  • Redesigned unit provides signifcantly more robust hardware protection

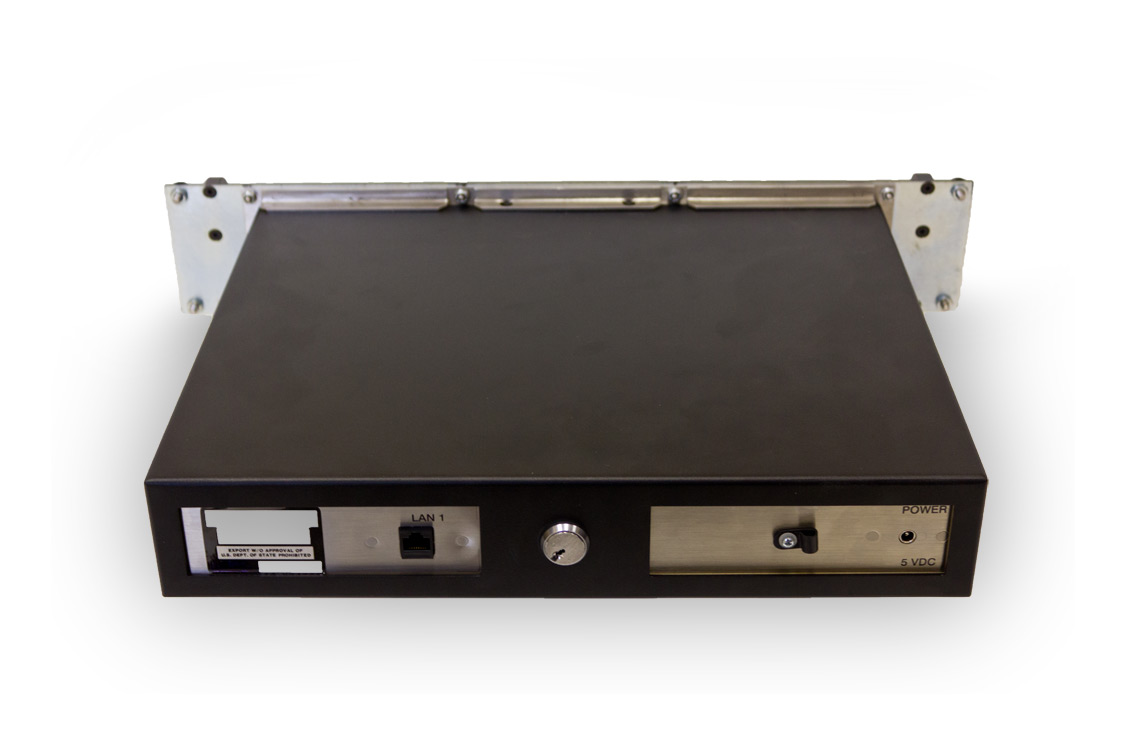

KeyUp V - Rear View
21.5 pounds
Interface Protocols
Serial, RS-232C"
Asynchronous TCPIP
7-bit ASCII, even parity"
Baud Rate
50 to 115,200"
Power requirements
120 V.A.C., 60Hz
Single Phase
25 Watts Maximum"
Batter Back-up
for Key Storage
PIN Processing
PIN block formats: ANSI, IBM 3264, Unisys, Diebold and Docutel.

PIN verification techniques: IBM 3624, Visa PVV, Diebold and NCR validation techniques.

Electronic Funds Transfer EFT Triple DES Encryption
